ECD / EC-EX6

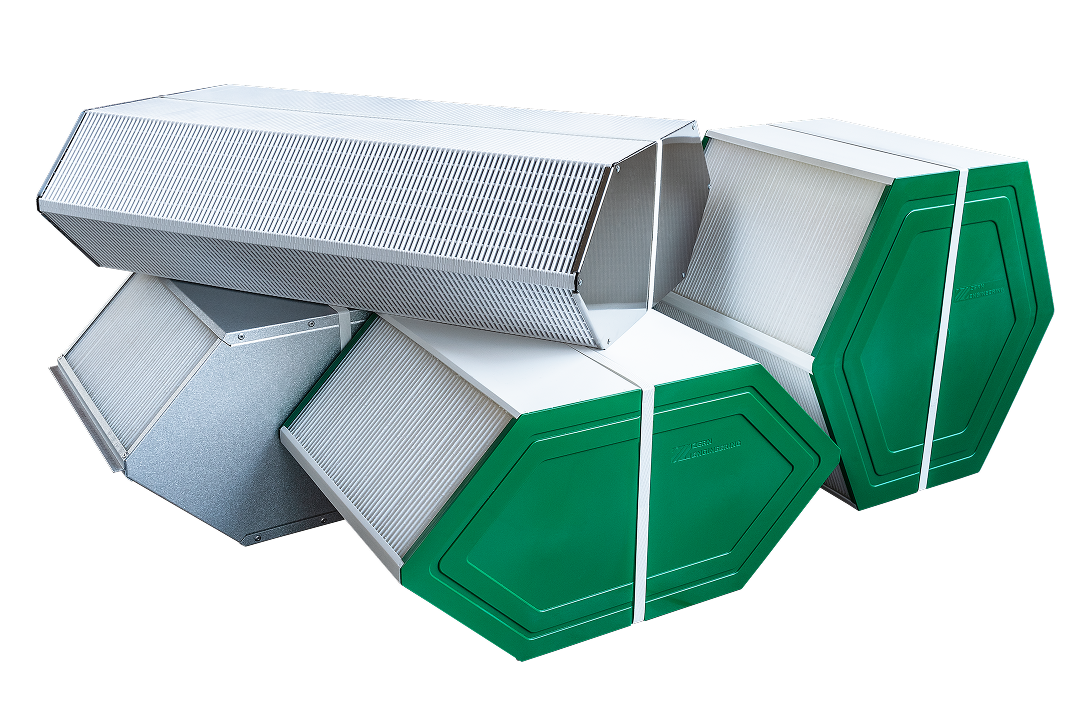

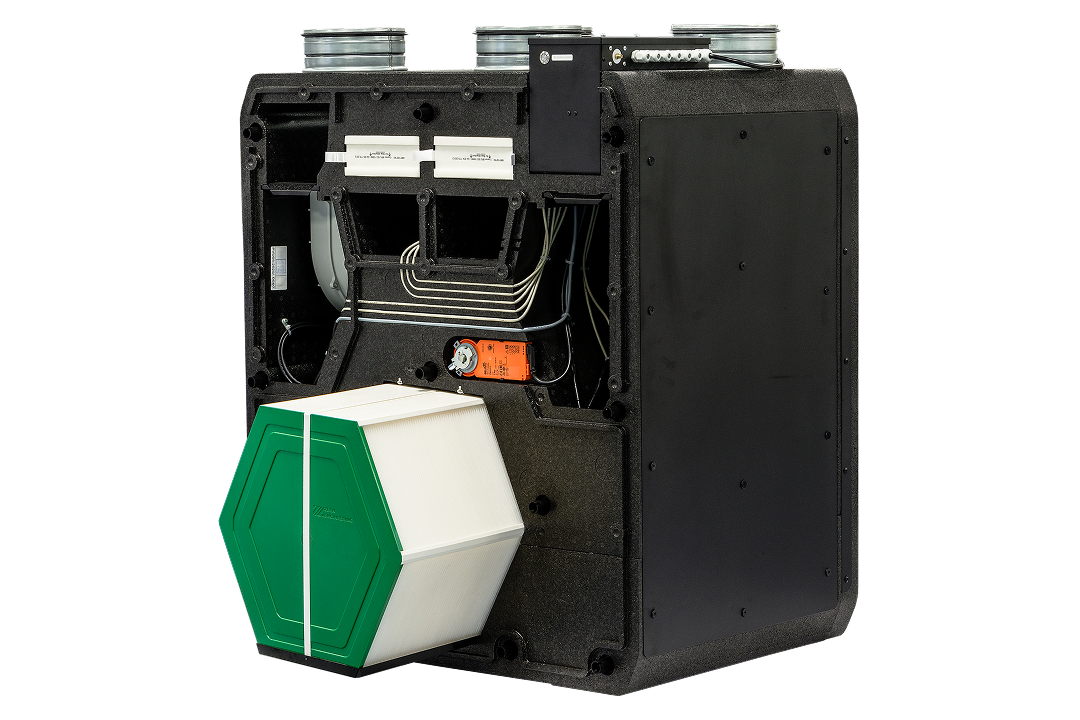

Enthalpy counter-flow heat exchangers

High-efficiency enthalpy plate heat exchangers by ZERN ENGINEERING (EC/ECD series) are designed for applications requiring both temperature and humidity recovery. Polymer plates with a microporous, vapor-permeable membrane selectively pass water vapor while keeping air streams completely separated - delivering energy saving, stable indoor RH, and low pressure drop for residential and commercial units.

Key operational parameters

Performance сharacteristics

Thermal efficiency

Up to 85% under optimal conditions.

Humidity efficiency

Up to 70% under optimal conditions.

Pressure drop

Typically, <150 Pa (depends on airflow and core size)

Operating temperature

−25 °C to +50 °C.

Air leakage

<1%

Maintenance

Durable, corrosion-resistant, washable cores.

Technical features

Design and structure

3D model

Principle of operations
Two sealed airstreams move in opposite directions through alternating channels. As warm, humid exhaust passes the cooler, drier supply, a vapor-permeable membrane transfers heat and moisture - without air mixing - reducing the load on humidification/dehumidification, especially in winter and dry climates.
Core material
Polymer plates laminated with a microporous membrane that allows moisture diffusion while providing a robust barrier to particles and microorganisms. The rigid, lightweight core resists mold, corrosion, and degradation and is washable for long service life.
Casing materials
  • Polystyrene (HIPS) - lightweight, insulated; ideal for compact residential units.
  • Aluzinc steel - economical and corrosion-resistant for long-lasting performance.
  • Aluminum - lightweight, corrosion-resistant; good for humid sites.
  • Epoxy-coated - for chemically active or coastal areas.
  • Stainless steel (AISI 304/316) - for aggressive/hygienic sites.

Main areas of use

Applications


  • Residential buildings - apartments, multi-family housing, private homes.
  • Commercial facilities - offices, shopping centers, schools, cultural institutions.
  • Industrial systems - production halls, warehouses, logistics complexes.
  • Hotel and wellness sector - hotels, fitness centers, swimming pools.
  • Public spaces - airports, stadiums, exhibition halls, transport hubs.

SIZES OF OUR HEAT EXCHANGERS

MODEL LINE


  • Dimensions A and B are fixed. Dimension C is the width of the heat exchanger and can be varied.
  • Each heat exchanger model can be manufactured with a depth (dimension C) ranging from 100 mm to 600 mm per unit.
  • Heat exchangers with a width of 600 mm and above are supplied as two or more units.
Series
commercial group		 Model A
width [mm]		 В
height [mm]		 C
depth [mm]		 X
casing modification
ECD / EC-EX6 172 397 172 100-600 5 / 5.1
230 455 230 1 / 1.1 / 3 / 3.1
232 461 232 2 / 2.1
366 366 366 2 / 2.1

Decoding Product Specifications

Designation key

ECD / EC-EX6
-
B
/
C
-
x

ECD / EC-EX6

commercial group

B

height (mm)

C

depth (mm)

x

casing modification

  • 1 - aluzinc
  • 1.1 - aluzinc with a T-profile
  • 2 - plastic
  • 2.1 - plastic with a T-profile
  • 3 - aluminium
  • 3.1 - aluminium with a T-profile
  • 5 - stainless steel
  • 5.1 - stainless steel with a T-profile
