R-N-EX
Sorption rotary heat exchangers recover sensible heat and moisture even at low relative humidity, where standard hygroscopic coatings lose effectiveness. A selective sorption layer pre-conditions outdoor air across wide climate ranges, lowering heating/cooling/humidification loads while keeping indoor RH stable. R-N-EX is ideal where humidity control is as critical as temperature.
Key operational parameters
Performance сharacteristics
Airflow volume
From 100 to over 50,000 m³/h, covering residential, commercial, and industrial applications.
Thermal efficiency
Up to 88% (depending on rotor type and operating conditions).
Humidity capability
Up to 70% (depending on operating conditions).
Pressure drop
Typically 150–250 Pa at nominal airflow.
Operating temperature
Stable operation from −25 °C to +50 °C.
Differential pressure
Recommended up to 1000 Pa.
Technical features
Design and structure
3D model
Principle of operations
A coated aluminum rotor alternates between warm, humid exhaust and cooler, drier supply air. Its molecular-sieve sorbent (e.g., 3Å zeolite) adsorbs water vapor and heat in the exhaust stream, then desorbs them to the supply stream on the next half-turn - without air mixing - delivering high latent recovery down to low RH.

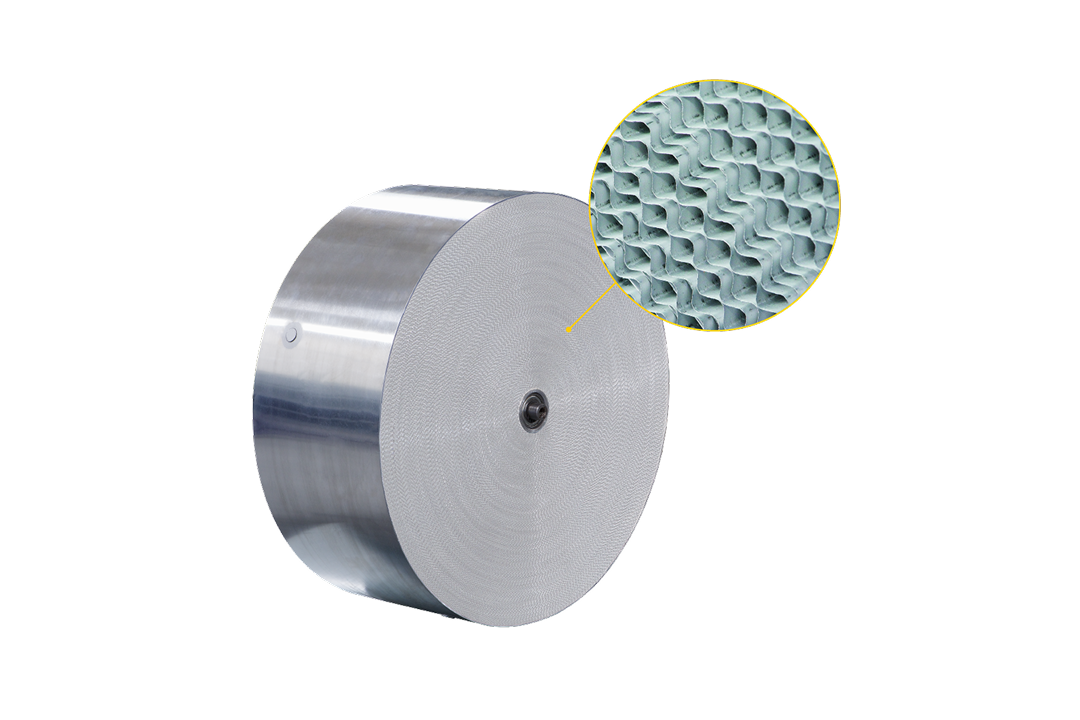

Rotor matrix
High-quality aluminum foil with a selective sorption coating for moisture transfer between streams.
Options:
- Foil thickness: 0.055 or 0.07 mm
- Wave height (corrugation): 1.4 / 1.6 / 1.8 / 2.1 mm
- Rotor width (depth): 100 or 200 mm

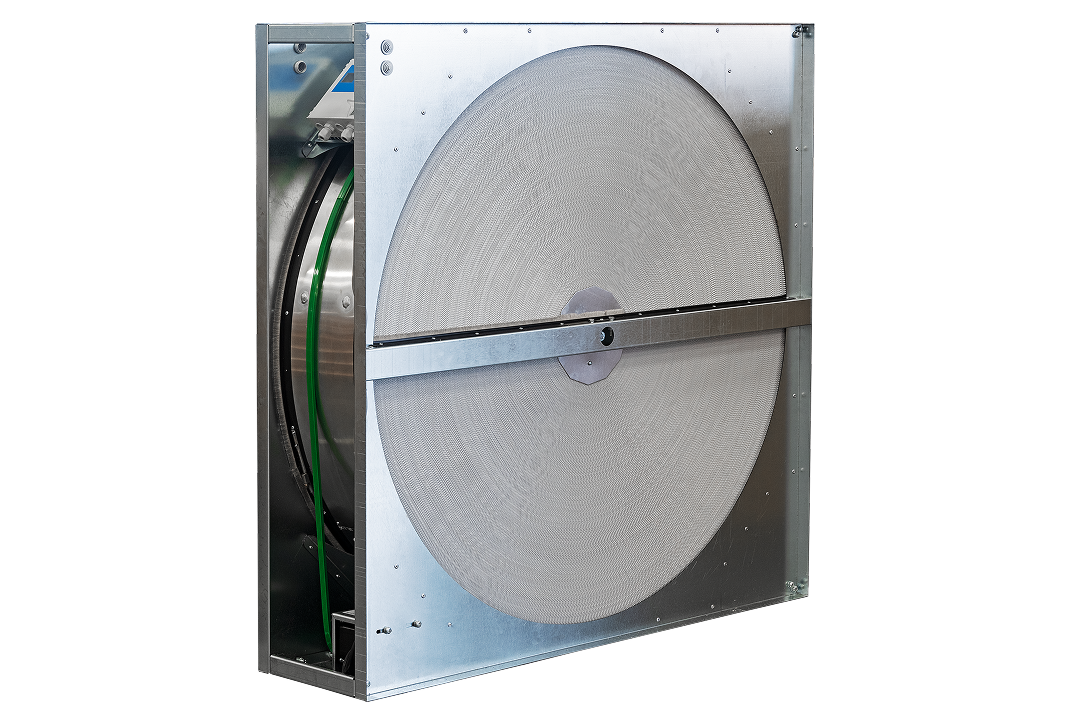

Casing and frame
- Galvanized steel - cost-effective for general use
- Aluminum - lightweight, corrosion-resistant; good for marine/humid sites
- Stainless steel (AISI 304/316) - for chemically aggressive or highly humid environments
Main areas of use
Applications

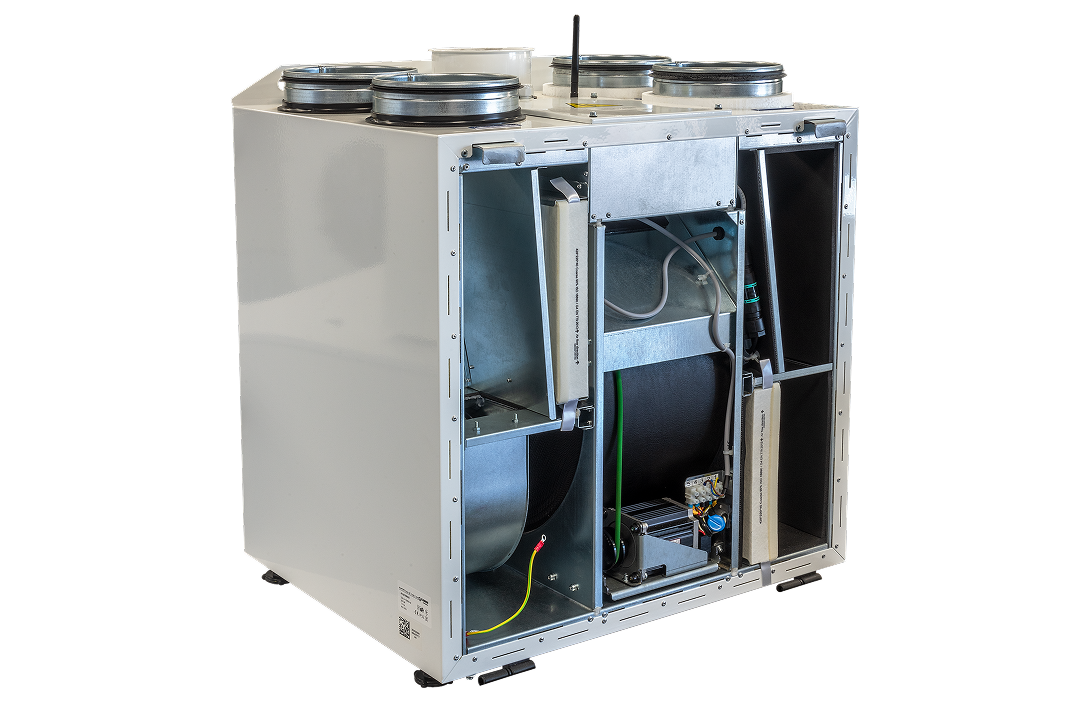

- Residential ventilation - apartments, multi-family houses.
- Commercial buildings - offices, shopping centers, schools, cultural spaces.
- Industrial facilities - workshops, warehouses, production halls.
- Hospitality & wellness - hotels, fitness clubs, swimming pools (humidity control with enthalpy/sorption rotors).
- Large public venues - airports, arenas, exhibition halls, transport hubs.
Decoding Product Specifications
Designation key
R
x
-
x
-
EX
Dx
-
x
/
7
-
0
-
1
A
×
B
×
C
-
x
R
Wheel width
- R «-»: 200 mm
- RS: 100 mm
x
Rotor type
- «-»: condensing
- «E»: enthalpy
- «N»: sorption
- «K»: epoxy
EX
standard commercial group
Dx
Rotor diameter (mm): 200-2500
x
wave height (mm):
- 1.4
- 1.6
- 1.8
- 2.1
7
foil thickness (mm):
7: 0,07
5.5: 0,055
0
purge section:
0-without.
1-with
1
number of wheel section
A
width (mm): 500-2600
B
height (mm): 500-2600
C
depth (mm): 250-2500
